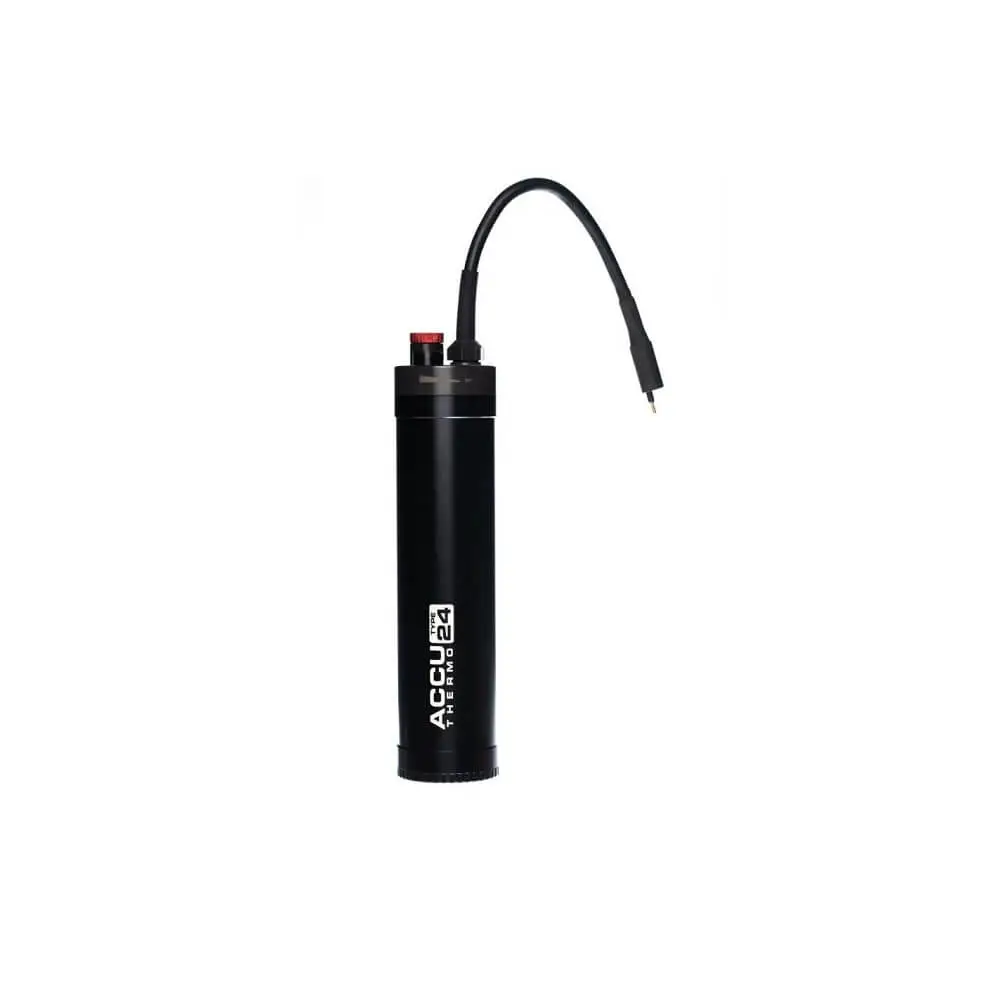

Ammonite Thermo 24Ah – battery pack, lithium

Description

• The Ammonite Thermo Lithium is easy to use – A magnetic switch with three positions lets you adjust the battery output underwater. The shape and placement of the switch make it accessible even when wearing thick gloves. An extra outlet on top of the battery lets you connect a light head. The battery is charged through the additional connector on top of the battery. The battery stays permanently sealed, which guarantees long-term watertightness.
• The Ammonite Thermo Lithium has an LED on top of the head that indicates battery status and charge level. The electronics in the head automatically detect when the E/O cable is disconnected and cut the voltage, protecting the connector against electrolysis. Power is restored automatically when the heating system is reconnected.
• Performance – The battery is available in two versions: the standard version with a maximum operating depth of 100 metres, and the SPECIAL version certified to 200 metres. In both versions the housing and head are made from anodised aluminium and Delrin®. Quality, durability and a flawless finish!

Features

• Two versions: 100 m or 200 m (SPECIAL)
• Housing in hard-anodised aluminium and Delrin®

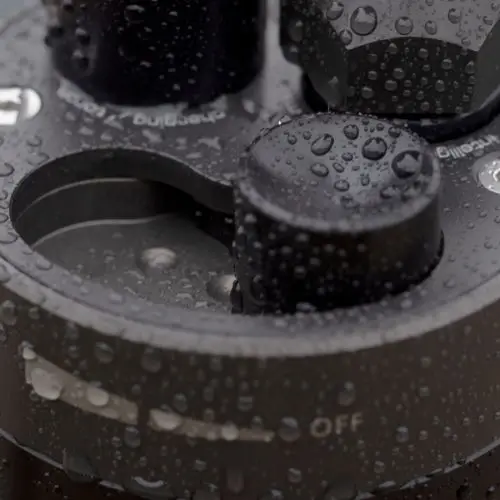

• Multi-position magnetic switch (OFF / 70% / 100%)

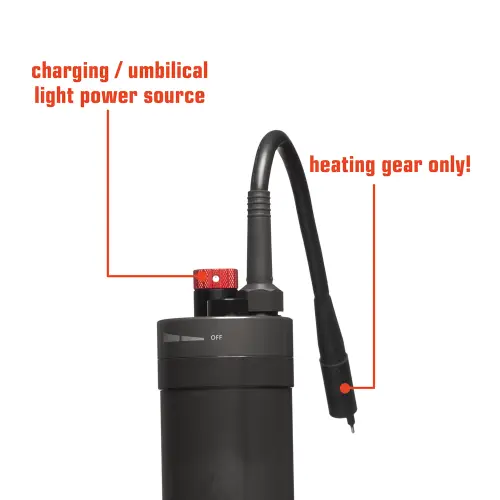

• Second output available for an umbilical light
• Protection system for the E/O cord
• LED indicator for battery status and charge level
• UN / DOT 38.3 compliant for air transport
• CE certification

Technical data for the Ammonite Battery Pack Thermo 24AH Lithium

• Battery type: lithium-ion
• Nominal voltage: 10.95 V
• Capacity: 23.45 Ah
• Charging time: ~ 8h00
• Maximum output power: 200W
• Maximum operating depth: 100m
• Operating temperature: -10 ° C to 40 ° C
• Length: 262mm
• Diameter: 66mm
• Weight: 1610g
• Weight in water: 715g
